The Rainbow Room solution is based on the eponymous application available on PlayStore Android TV. This solution allows you to connect any type of meeting room to Rainbow and transform it into a real conference room.
Rainbow Room equipment overview:
While the topology of each room will determine the choice of audio/video devices to use, the basis of the solution will remain unchanged for all environments.
| HDMI Monitor | |||
| Internet Connection Wifi/Ethernet | |||
| USB Speaker | |||
| USB Mic | |||
| USB Camera | |||
|
Android TV Box: |
|||
Note: The Rainbow Room solution is supported with Nvidia Shield TV Pro 2019 or Nivdia Shield TV 2017. The "stick" version without USB connector is not compatible with Rainbow Room. Order your device direclty from Nvidia website.
Note: We offer two Bundles of audio/video devices to adapt the Rainbow Room solution to all your meeting rooms. Do not hesitate to take a look at these devices!
Rainbow Room equipment installation:

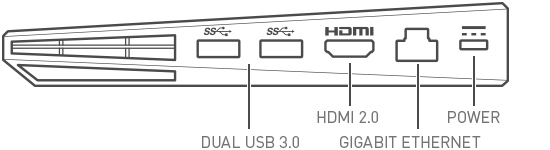

Installing a conference room in no time is now possible with the Rainbow Room solution. Simply connect the devices as shown below.
|
Connect your audio/video devices to the USB 3.0 Ports. Note that no need to respect an order of connection with our official Bundles. |
|
Connect your monitor (TV, screen, overhead projector) to the HDMI Port. |
|
Connect your Android TV Box to Internet using the GIGABIT ETHERNET Port. We recommend that you use a wired connection that is often more stable than a Wifi connection. |
Next step: Now that your equipments are ready, find out how to create and connect your conference room to your Rainbow Company.
