The Applications section in the analytics covers on which device your users are accessing Rainbow features.
These analytics are currently available only in the Global dashboard.
Read also: Global analytics - General principles

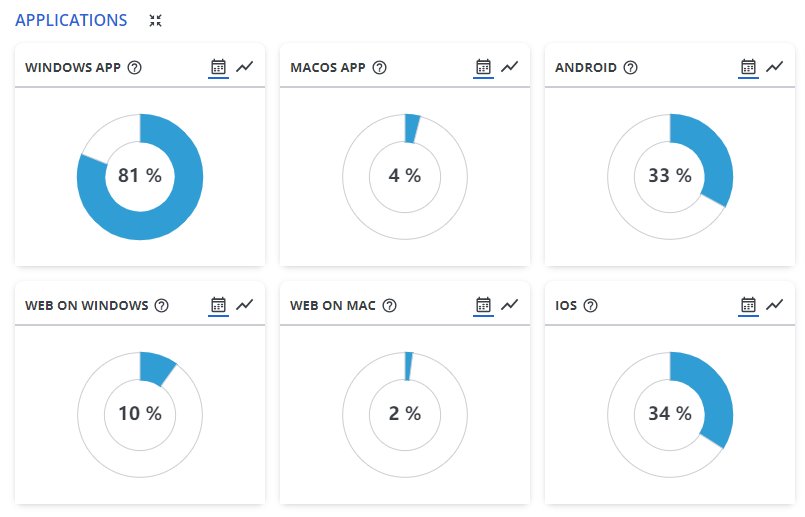

The aggregated view is composed of 6 pie charts, one for each official Rainbow client:
Each pie represents the ratio of users active with this Rainbow client in the last 7 days of the period over the total number of active users in the last 7 days of the period. For example, if the above example was captured on August 7, it would mean that among 100 users active between August 1 and August 7, 81 users have used the Windows application at least once, 10 have used the web application on Windows, and so on
The total of all slices may exceed 100% as a user using different Rainbow clients is counted that many times. Also, the total may be below 100%, for example when the company is also using Rainbow through third-party applications.

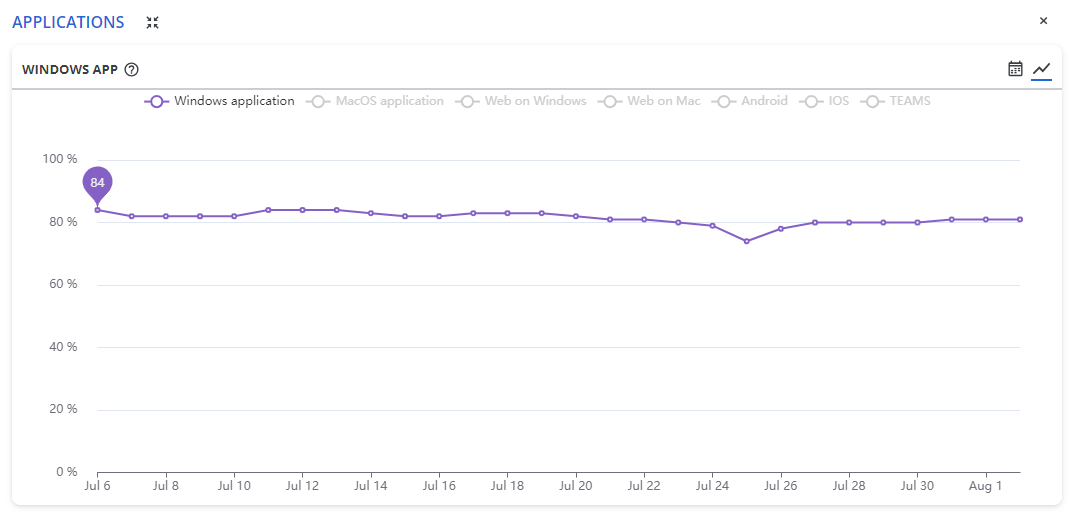

When switching to the per-day view for one graph, all pies are replaced with a line chart:
You may click on the legend to visualize more Rainbow clients. The values shown are the same as for the pie chart: ratio of users active with this Rainbow client in the last 7 days before that day over the total number of active users in the last 7 days before that day. So, the right-most value is identical to the pies values:
|
Pie charts displayed for the period July 6 to August 2, thus showing value on August 2 about users active between July 27 and August 2 : |
|

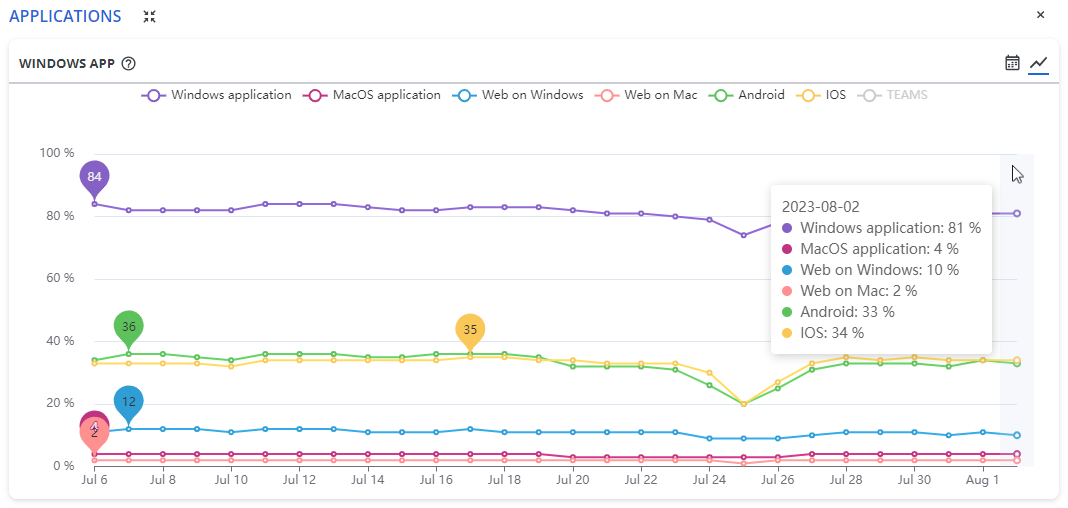

Line chart over the same period. As you can see, the values for August 2 are the same as the pie charts |
